1. Pre-Operation Setup

Machine Inspection – Check the rollers, cutting system, punching mechanism, hydraulic components, and electrical connections. Ensure all parts are secured and properly aligned.

Power & Safety Check – Connect the machine to the correct power supply. Test the emergency stop button and ensure all safety guards are in place.

Material Loading – Place the metal coil (galvanized steel, aluminum, or stainless steel) onto the decoiler. Adjust the feeding guides for smooth and aligned material entry.

2. Operating the Machine

Material Feeding – Carefully guide the metal strip into the rollers, ensuring proper alignment to prevent bending or deformation.

Parameter Setup – Use the control panel to enter the required tray dimensions, hole punching pattern, and cutting length. Verify settings before starting.

Roll Forming Process – Press Start, and the machine will gradually shape the metal into the desired cable tray profile. Monitor the alignment and adjust if necessary.

Perforation & Cutting – The automated punching system creates precise mounting holes, and the hydraulic cutter ensures clean, accurate cuts based on the programmed length.

3. Post-Production & Maintenance

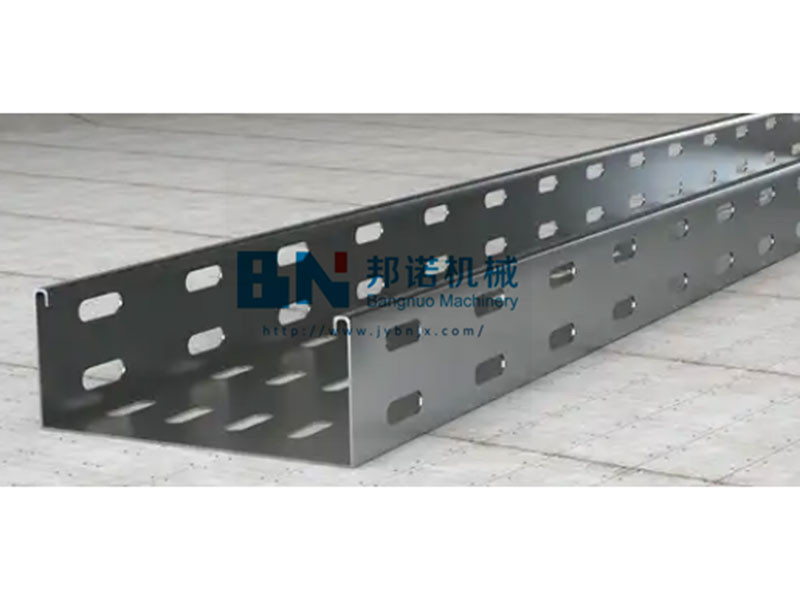

Quality Inspection – Check the finished cable trays for correct dimensions, hole placement, and smooth edges.

Shutting Down – Turn off the machine, disconnect power, and remove any metal debris from the rollers and cutting area.

Routine Maintenance – Lubricate moving parts, inspect rollers and cutting blades for wear, and ensure all hydraulic and electrical systems are functioning properly.

By following these steps, you ensure efficient production, high-quality cable trays, and long-term machine performance.
