1. Pre-Operation Setup

Machine Inspection – Inspect all components, including rollers, cutting blades, and hydraulic systems, to ensure they are clean, aligned, and functioning correctly. Check for any loose parts or damage.

Power & Safety Check – Connect the machine to the appropriate power source. Test the emergency stop function and verify that all safety guards are in place and operational.

Material Loading – Load the metal coil (typically galvanized steel, aluminum, or stainless steel) onto the decoiler. Adjust the feeding guides to ensure smooth and aligned feeding of the coil.

2. Operating the Machine

Material Feeding – Feed the metal strip into the machine, ensuring it is properly aligned to prevent misformation. Ensure the material flows smoothly through the rollers.

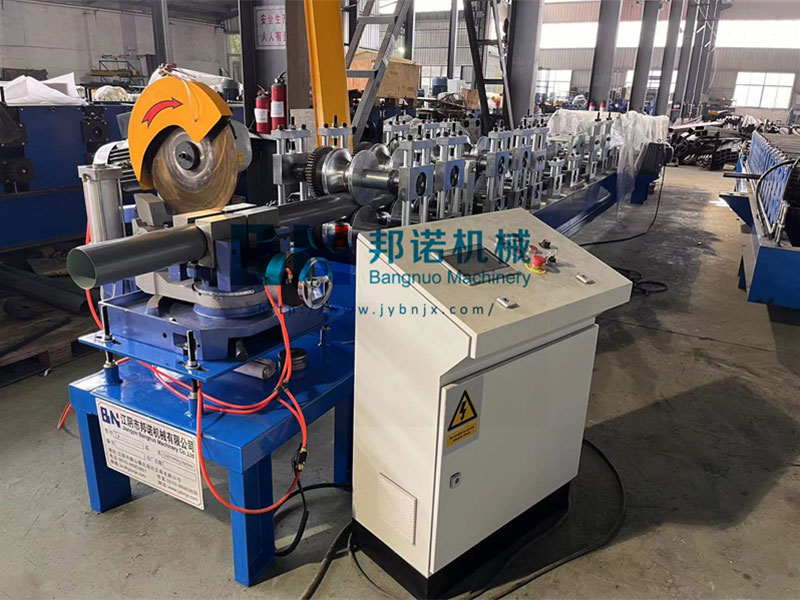

Parameter Setup – Use the control panel to set the downspout dimensions, including diameter, length, and hole punching patterns. Verify the settings before starting the machine.

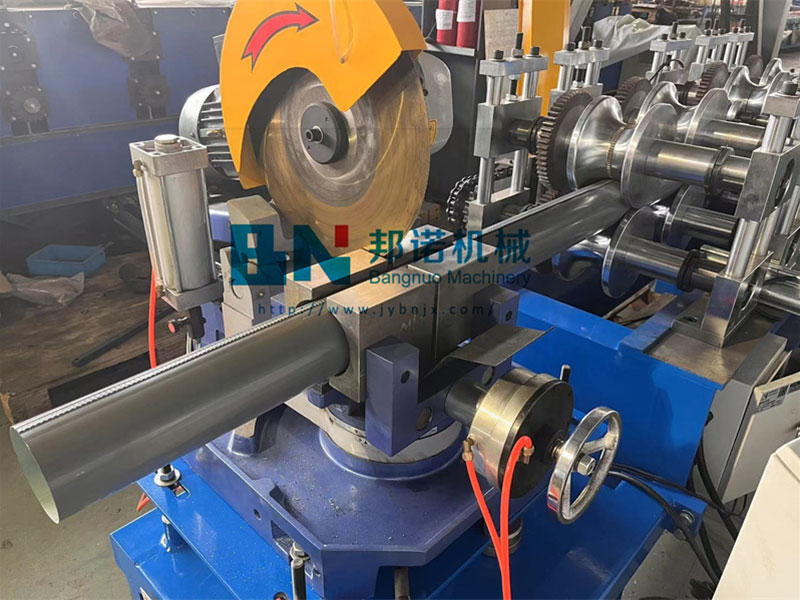

Roll Forming Process – Press Start, and the machine will form the material into the required downspout shape. Monitor the process to ensure the material is correctly formed and aligned. Adjust the settings if necessary.

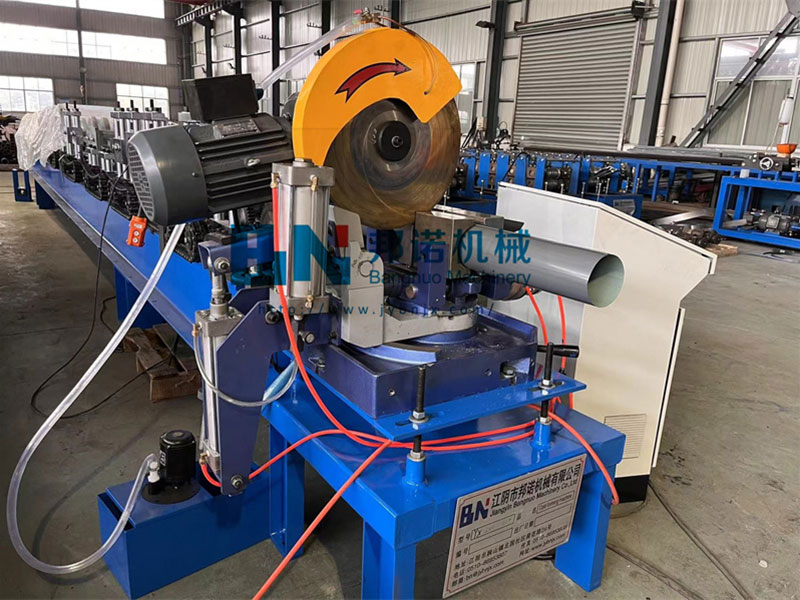

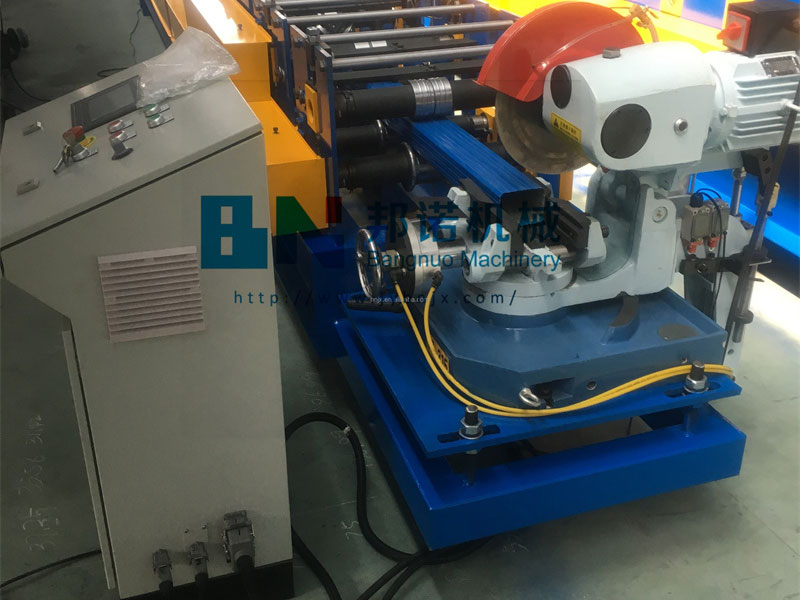

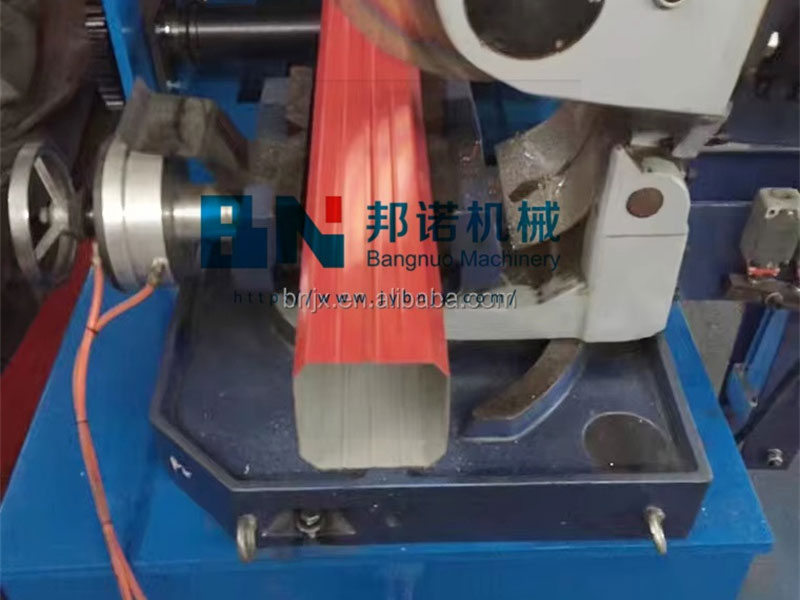

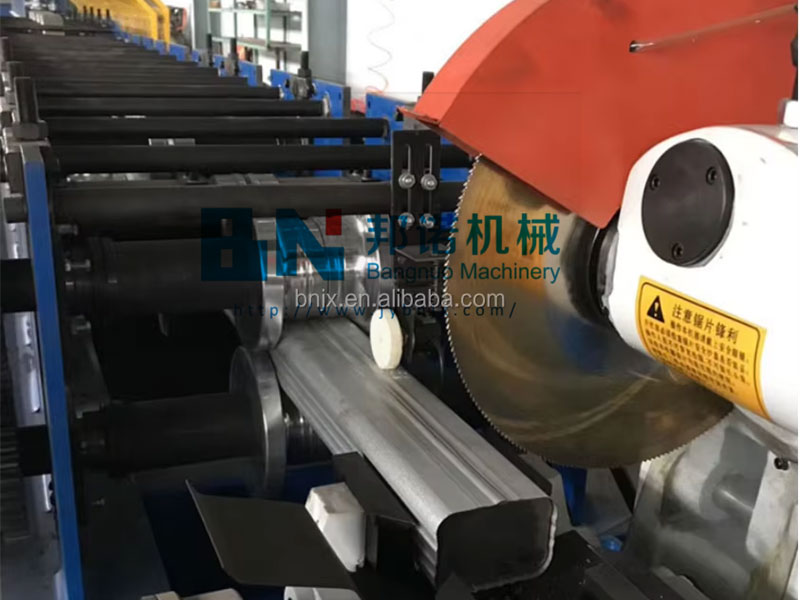

Cutting & Finishing – The hydraulic cutting system will automatically cut the downspouts to the pre-programmed length. Ensure that the cutting is clean and smooth. The machine will also create necessary holes for mounting if specified in the settings.

3. Post-Production & Maintenance

Quality Inspection – Inspect the finished downspouts for accurate dimensions, smooth edges, and uniform profiles. Check that the hole punching is precise and there are no defects.

Shutting Down – After completing production, turn off the machine, disconnect the power, and remove any metal debris from the rollers and cutting areas.

Routine Maintenance – Lubricate the moving parts, inspect the rollers and cutting blades for wear, and check the hydraulic and electrical systems for proper function.

4. Routine Maintenance

Daily Maintenance

✅ Inspect rollers and feeding guides for alignment and wear.

✅ Clean the punching and cutting areas of any debris.

✅ Lubricate all moving components to reduce friction and ensure smooth operation.

Weekly Maintenance

✅ Tighten any loose bolts and screws.

✅ Inspect hydraulic and electrical systems for leaks or faults.

✅ Check and lubricate all moving parts to ensure smooth functionality.

Following these instructions will ensure that the Downspout Roll Forming Machine operates efficiently, producing high-quality downspouts with consistent results. Regular maintenance and proper machine handling will extend the machine's lifespan and improve production efficiency.
